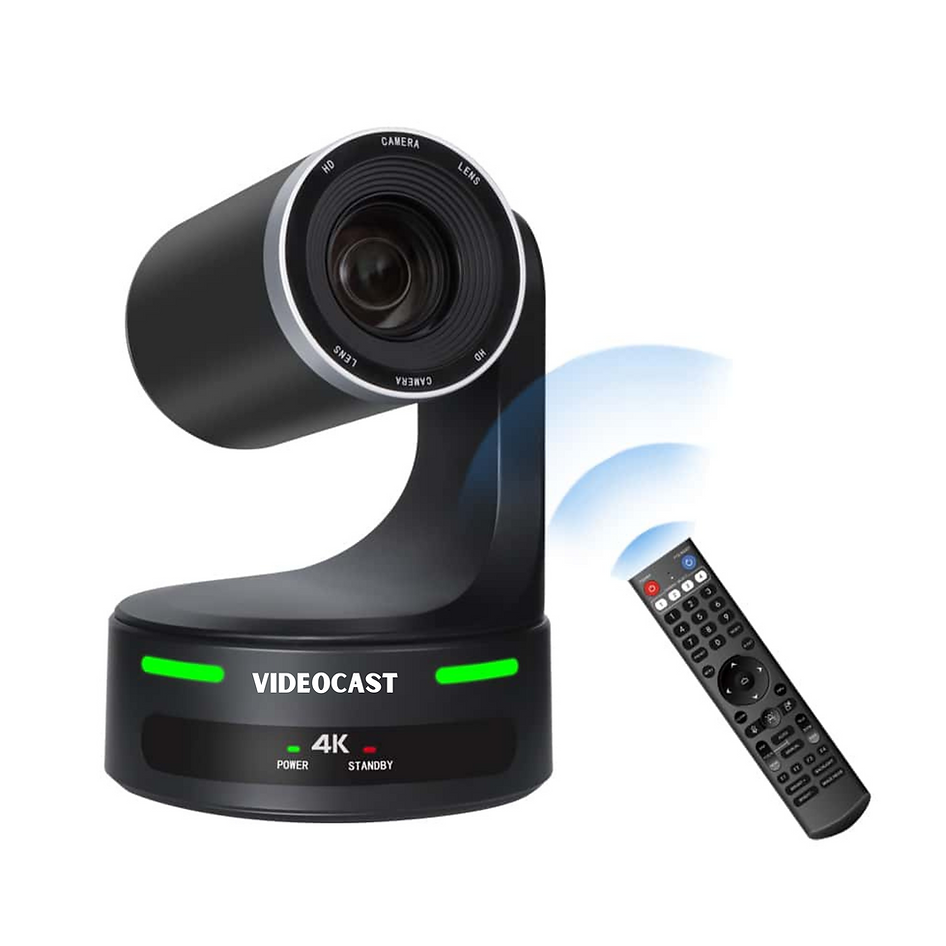

Videocast 4K UHD NDI VC201 PTZ Video Camera

The VIDEOCAST 4K UHD NDI VC201 PTZ Video Camera is a high-performance camera designed for professional-grade applications in live streaming, video conferencing, education, worship services, and broadcasting. With its cutting-edge SONY 1/2.8 Progressive CMOS sensor, 8.50 megapixels, and ultra-clear 4K (3840x2160) resolution at up to 30fps, it delivers unparalleled image quality and precision.

Equipped with a 20x optical zoom and a 16x digital zoom, this camera captures every detail from wide-angle to close-up shots. Its advanced features, including multiple output interfaces, low-light performance, and support for diverse network and control protocols, make it a versatile solution for various scenarios.

Key Features

• 4K Ultra HD Resolution: SONY 1/2.8 Progressive CMOS sensor with 8.50 megapixels for crisp, high-definition images at up to 4K 30fps.

• 20x Optical Zoom: Premium ultra-wide-angle lens with 20x optical zoom and 16x digital zoom for capturing distant details with exceptional clarity.

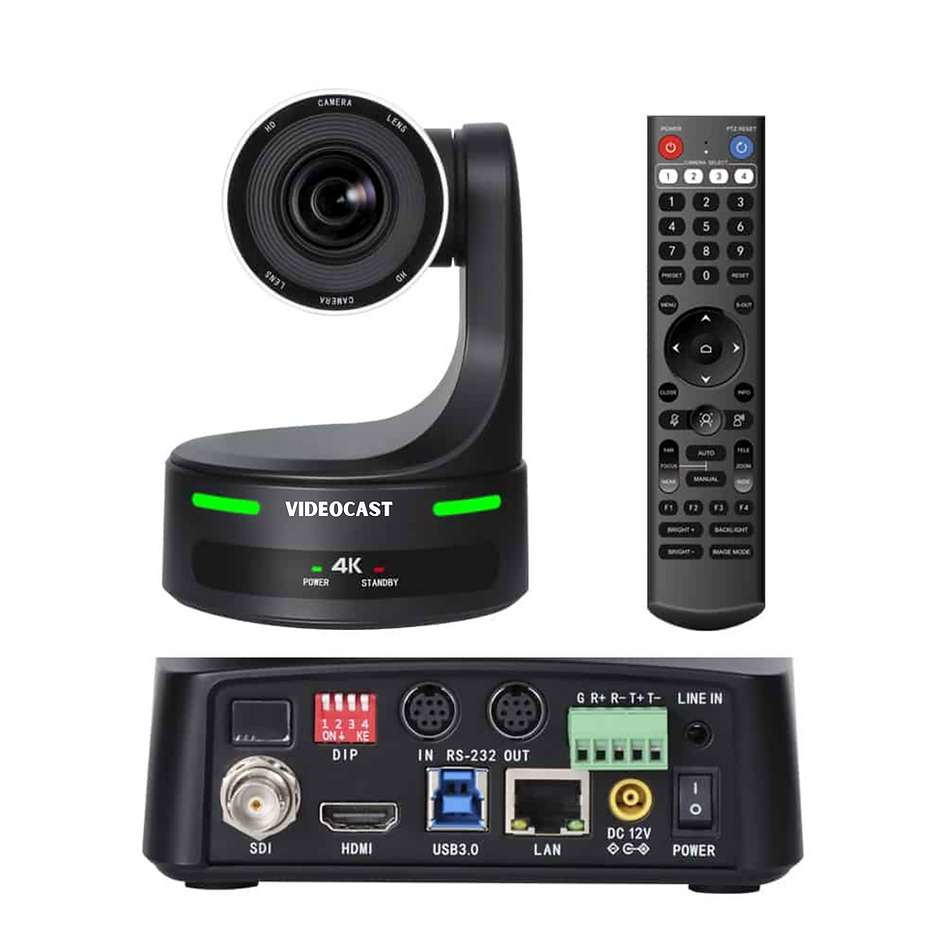

• Abundant Output Options: Supports HDMI, 3G-SDI, USB 3.0, and LAN outputs in sync. Optional POE (Power Over Ethernet) for simplified setups.

• Low-Light Excellence: Advanced CMOS sensor with high S/N Ratio and 2D & 3D noise reduction ensures clean and sharp images even in ultra-low-light conditions.

• IR Pass-through: Receives and transmits IR signals, allowing seamless integration with video conferencing systems.

• Multiple Compression Standards: Supports YUY2, H.265, MJPG, and H.264 formats for efficient video streaming and storage.

• Network Protocols: Compatible with ONVIF, SRT, RTSP, RTMP, RTMPS, and NDI|HX2 (optional) protocols for versatile streaming and control.

• Control Protocols: VISCA (VISCA Over IP), PELCO P/D, and optional NDI protocol with automatic protocol detection.

• Broadcast-Level Tally Display: Integrated tally status indicator for professional broadcast applications.

• Flexible Installation: Can be wall-mounted, ceiling-mounted, or placed on a desktop for ease of use in any environment.

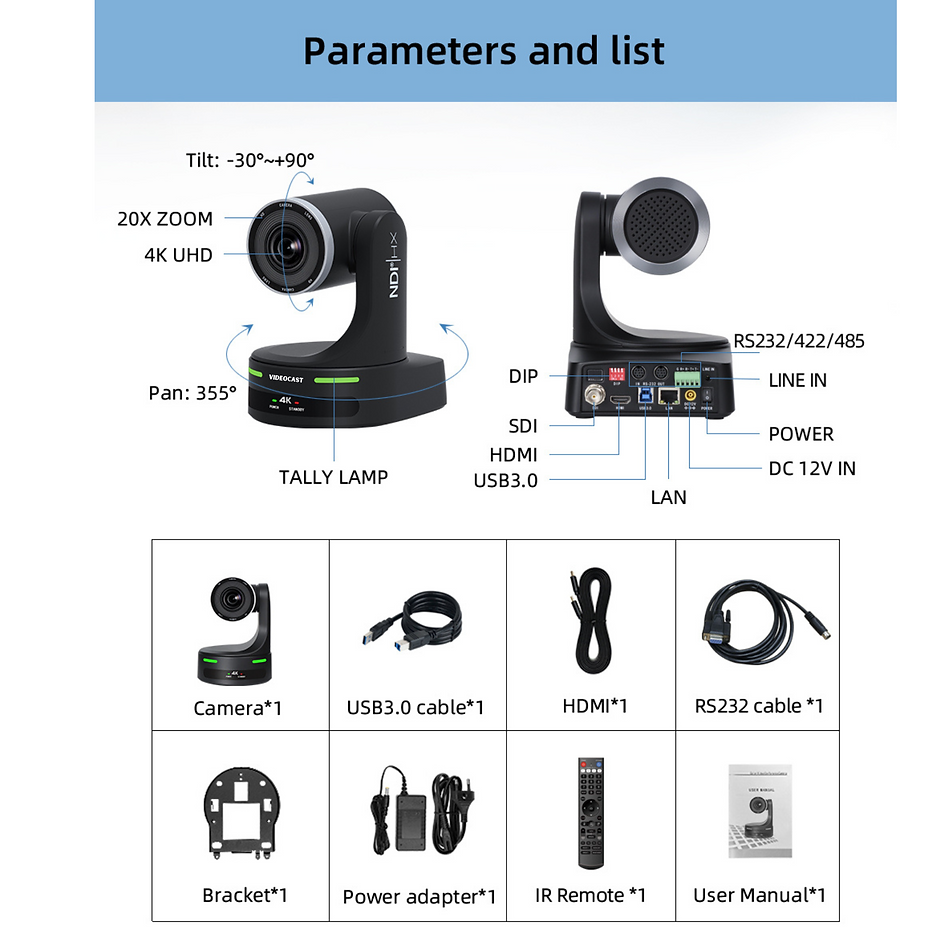

Technical Specifications

• Image Sensor: SONY 1/2.8 Progressive CMOS, 8.50 Megapixels
• Resolution: 4K (3840x2160) at 30fps
• Zoom: 20x optical, 16x digital
• Outputs: HDMI, 3G-SDI, USB3.0, LAN (POE optional)
• Video Compression: YUY2, H.265, MJPG, H.264
• Protocols: ONVIF, SRT, RTSP, RTMP, RTMPS, NDI|HX2
• Control Protocols: VISCA (VISCA Over IP), PELCO P/D
• Low-Light Performance: S/N Ratio > 55dB
• Noise Reduction: 2D & 3D digital noise reduction
• Installation Options: Wall, ceiling, or desktop

Applications

• Live Streaming: Perfect for high-quality live streaming of events, webinars, and conferences.
• Video Conferencing: Seamlessly integrates with conferencing systems for crystal-clear video communication.
• Education: Ideal for remote learning, lecture capture, and online teaching setups.
• Worship Services: Enhances live broadcasting and recording of worship sessions.
• Broadcasting: Designed for professional-grade broadcasting environments.
• Corporate Events: Perfect for virtual meetings, presentations, and training sessions.

The VIDEOCAST 4K UHD NDI VC201 PTZ Video Camera is the ultimate choice for professionals who demand versatility, quality, and reliability. Whether its for live events, classrooms, or studios, this camera is built to deliver top-notch performance every time.
