VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out

VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out Specification

Input
2 HDMI

Power Supply
5v

Output
2 HDMI

Usage
Live Streaming

Product Type
Switcher

Application
Live Event

Supply Voltage
5 Volt (v)

Function
Video Switcher

Color
Black

Warranty
1 Year

Material
Metal & Plastic

VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Paypal, Delivery Point (DP), Cash Against Delivery (CAD), Cash Advance (CA), Days after Acceptance (DA), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
20 Pieces Per Week

Delivery Time
1 Week

Sample Available
No

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Domestic Market
Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Daman and Diu, Goa, Jharkhand, West Bengal, All India, South India, Central India, West India, North India, East India, Gujarat, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand

About VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out

The 2 Way VIDEOCAST HDMI Video Switcher for Live Streaming, it supports 2 HDMI inputs. Input and output resolution support 1920X1080@60Hz, and support HDCP1.4 standard. Support HD embedded audio or external analog audio, , after mixed processing, can be embedded in the output HD signal or output from the analog port. Suitable for program production, interview and speech on-site production, outdoor experience events, school courseware production and other video switching needs. It can be used in live streaming and various event venue.

Features :

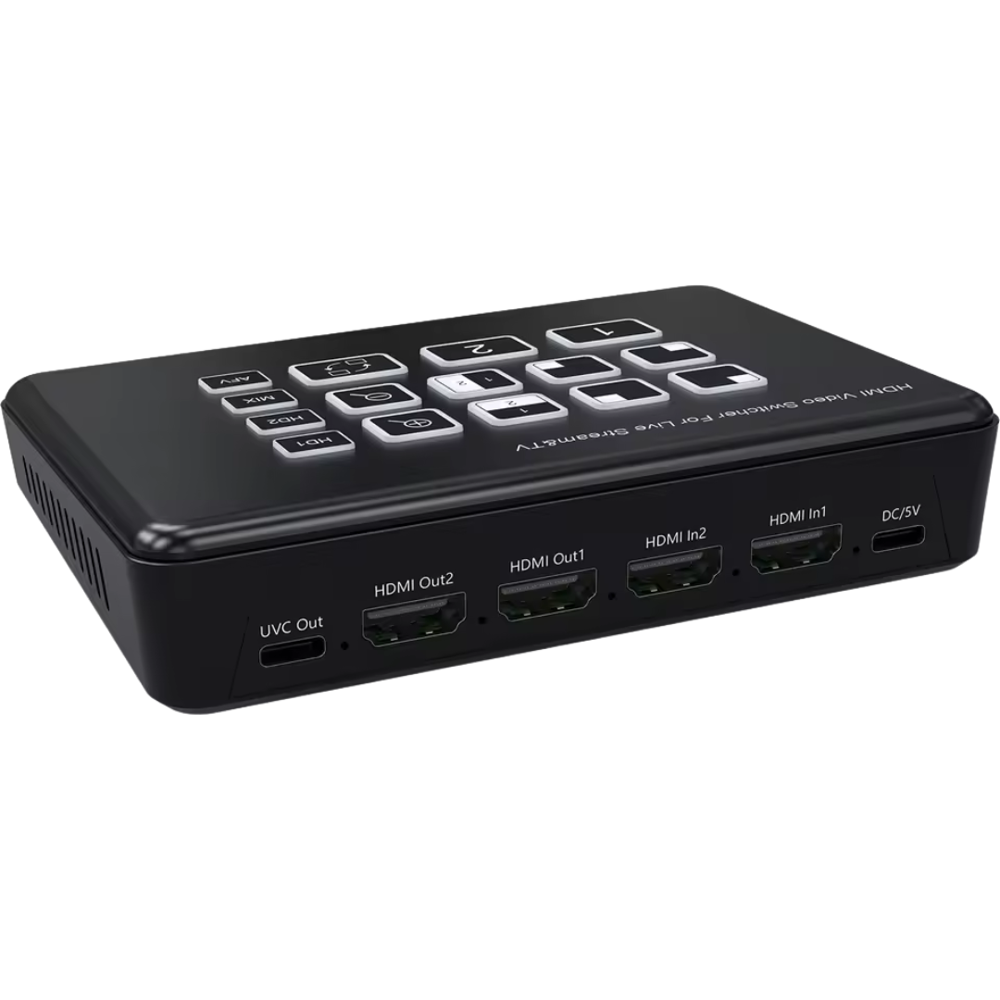

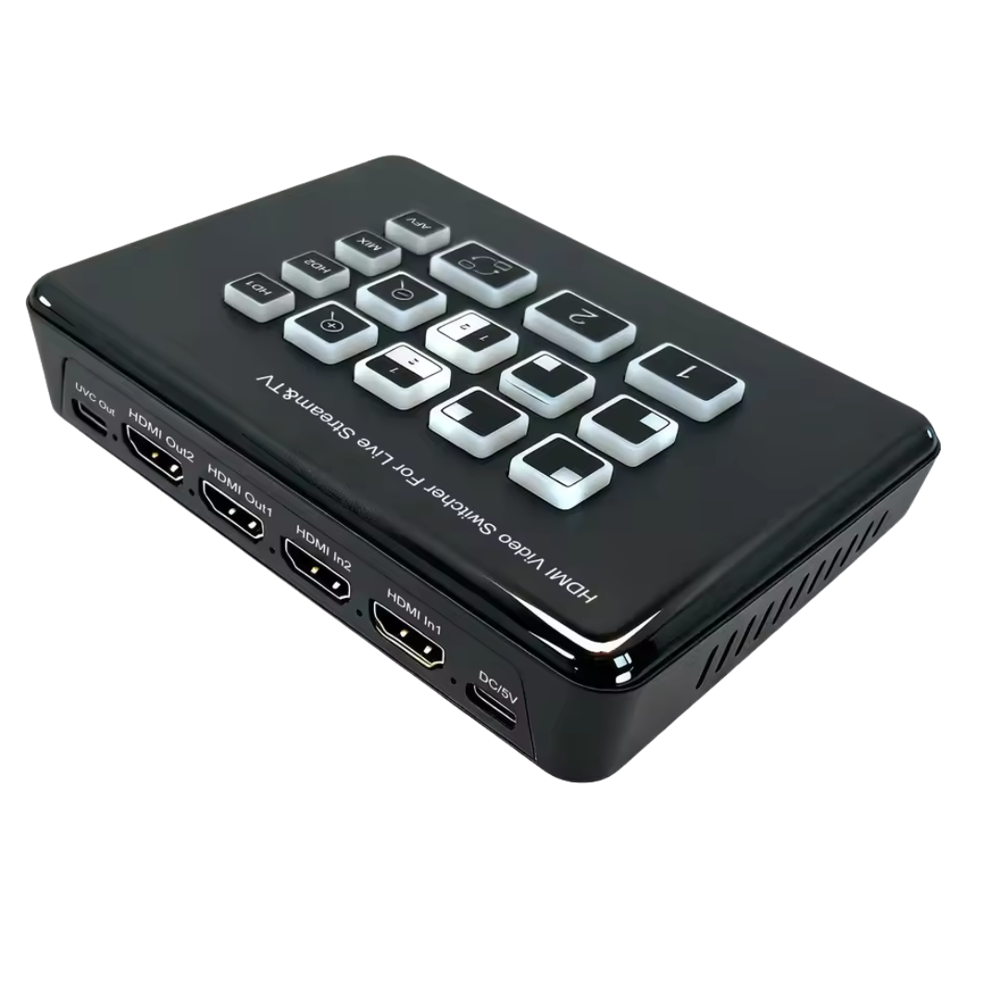

2 HDMI inputs, 2 HDMI outputs;
One HDMI output supports PVW multi-view preview, another HDMI output supports PGM output;
1 way Type-C port UVC capture output;
Supports OSD display of input channel signals, resolution information, and volume information;
In the mix mode, HDMI embedded audio select fixed HDMI audio and mix Mic/LINE IN audio;
Support HD audio following (fixed following PGM);
One Type-C 3.0 capture and streaming interface supports YUY2 video format and support UVC 1.0;* Support 4 picture in picture modes(PIP), PIP image enlarged or reduced;
Support left and right two image, upper and lower image;
Extensive compatibility: fully supports mainstream live streaming and media software, including

OBS Studio, PotPlayer, and VLC etc.;

Support power-off save settings;
High quality keys, color backlight design.

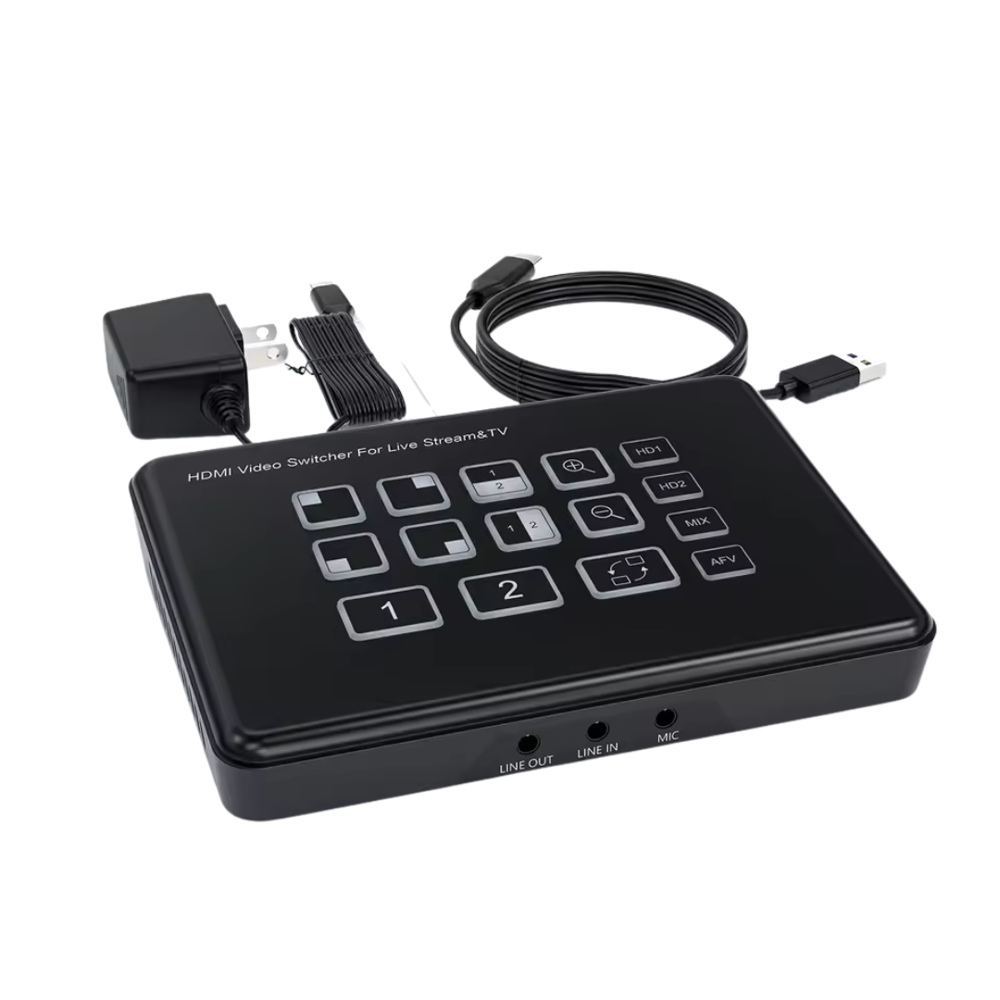

Package include

1. 2 way HDMI video switcher for live streaming
2. Type-c to USB 3.2 Gen1 cable
3. Type-C 5V 1A power adapter
4. User manual

Efficient Live Streaming Control

Easily manage video feeds during live events using the VIDEOCAST 2 Channel V2 Video Switcher. Its user-friendly interface allows quick source switching without signal loss, making it perfect for live streaming and professional presentations. The unit supports both HDMI input and output, ensuring compatibility with most modern equipment.

Sturdy and Reliable Design

Built with high-quality metal and plastic materials, the VIDEOCAST switcher promises durability and longevity. Its 1-year warranty ensures you are covered for any manufacturer defects, offering peace of mind for event organizers and streaming professionals alike.

FAQ's of VIDEOCAST 2 Channel V2 Video Switcher with USB and HDMI Loop out:

Q: How do I set up the VIDEOCAST 2 Channel V2 Video Switcher for live streaming?

A: Simply connect your video sources to the two HDMI input ports, then link your display or streaming device to one of the HDMI outputs or the HDMI loop out. Power the unit with its 5V supply, and you're ready to switch between video feeds using the onboard controls.

Q: What are the main benefits of using this video switcher for live events?

A: The main advantages include seamless transitions between two video sources, simple operation, robust build quality, and reliable performance during live events. Additionally, the HDMI loop out allows for real-time monitoring or extended output setups.

Q: When should I use the HDMI loop out feature?

A: Use the HDMI loop out when you need to monitor live feeds on a secondary display or route the signal to additional equipment without signal delay, enhancing your flexibility during productions.

Q: Where is this video switcher commonly used?

A: The VIDEOCAST 2 Channel V2 Video Switcher is widely used at live events, conferences, houses of worship, and by content creators for live streaming applications in India.

Q: What is the process for claiming the 1-year warranty?

A: In case of product defects during the warranty period, contact the distributor, manufacturer, or supplier from whom you purchased the unit. Retain your purchase invoice for smooth processing of warranty claims.
